H38J 重型高速封邊機

信息來源：濟南品脈數控設備有限公司 文章作者： 發布時間：2025-05-12 13:08:34 點擊量：

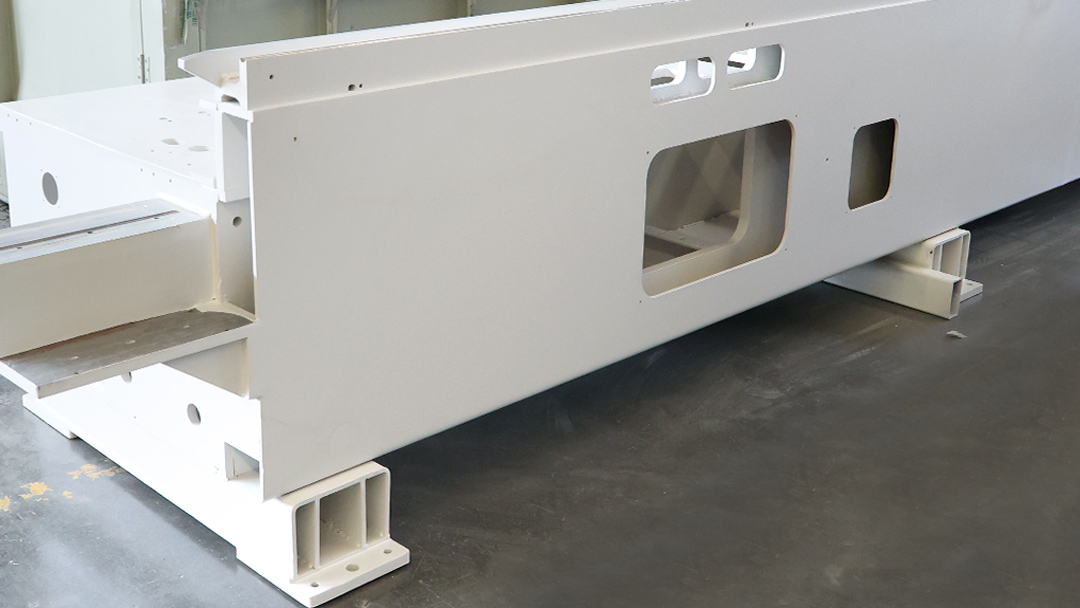

重型鋼軌床身

Heavy-duty rail bed structure

采用加厚鋼板焊接，退火去應力處理，大型龍門精銑加工。鋼結構導軌，厚度達2公分以上，設備高速運行更平穩。

It is welded with thickened steel plates, subjected to annealing stress relief treatment, and processed by large gantry precision milling. Steel structure guide rails with a thickness of over 2 centimeters ensure more stable high-speed operation of the equipment.

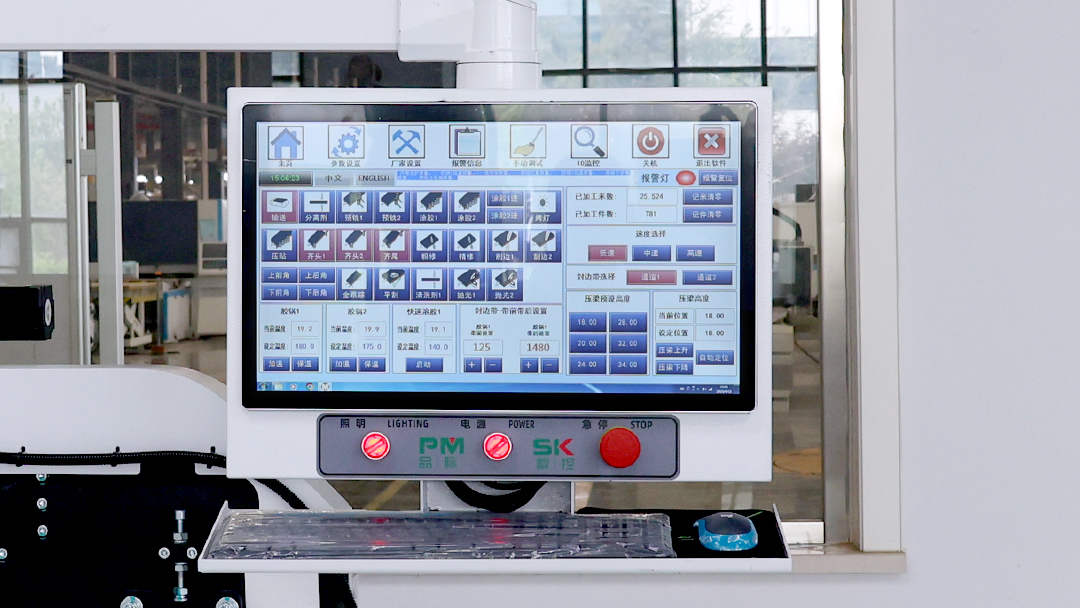

PMSK定制操控系統

PMSK customized control system

系統功能全面，界面簡潔，操作簡單，兼容性強。

The system has comprehensive functions, a simple interface, easy operation and strong compatibility.

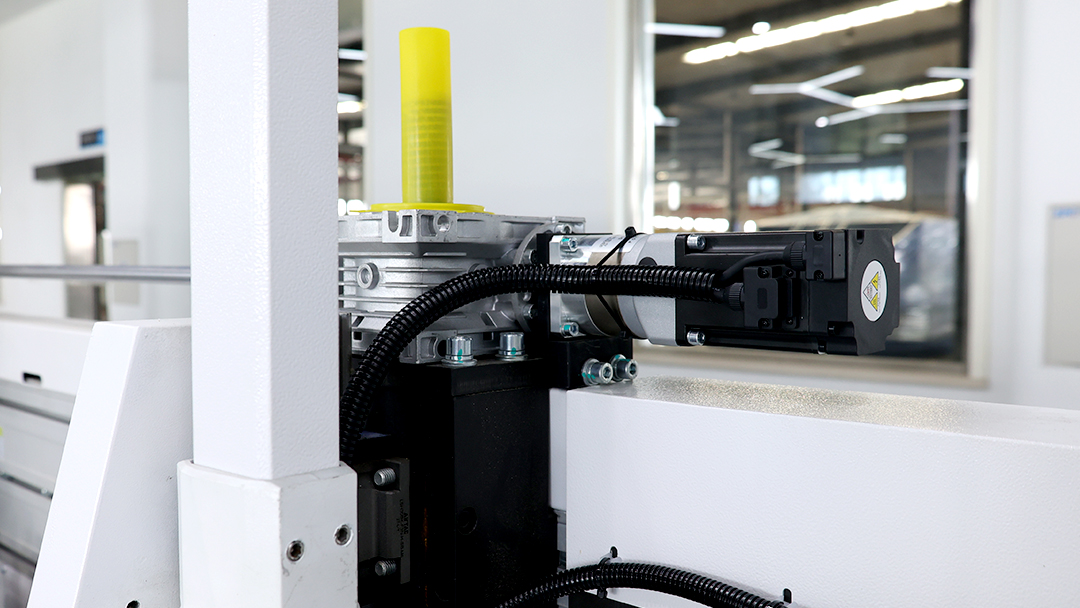

伺服升降壓梁

Servo-regulated pressure beam

伺服升降壓梁結構，精準控制，實現不同厚度板材封邊快速調節。

The servo-regulated pressure beam structure enables precise control, allowing for rapid adjustment of edge banding for plates of different thicknesses.

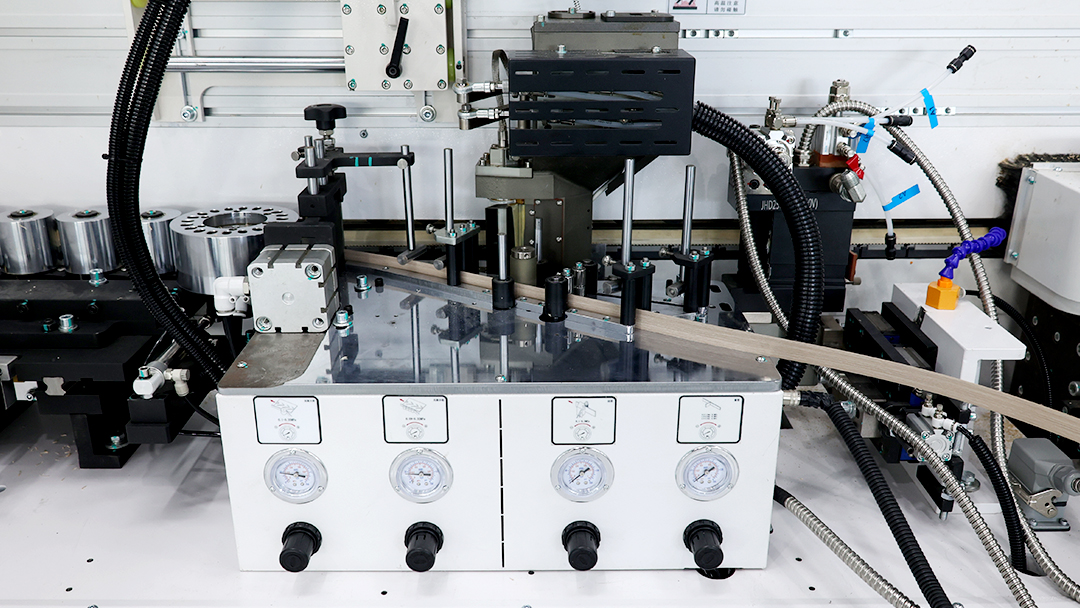

多通道伺服送帶+伺服涂膠

Multi-channel servo belt feeding + servo gluing

多通道伺服送帶，不同封邊條快速切換，伺服送帶減少封邊帶浪費，提升封邊穩定性和效率。伺服涂膠，動作快速精準，涂膠連續性好，穩定性高。

Multi-channel servo belt feeding enables rapid switching between different edge banding strips. The servo belt feeding reduces the waste of edge banding strips and enhances the stability and efficiency of edge banding. Servo gluing features rapid and precise movements, good continuity and high stability in gluing.

伺服偏擺壓貼

Servo offset pressing and pasting

獨立電機動態匹配輸送速度，錐形壓貼輪錯位排列，高速運轉下保持穩定壓貼效果。

The independent motor dynamically matches the conveying speed, and the conical pressing wheels are arranged in a staggered manner to maintain a stable pressing effect at high speeds.

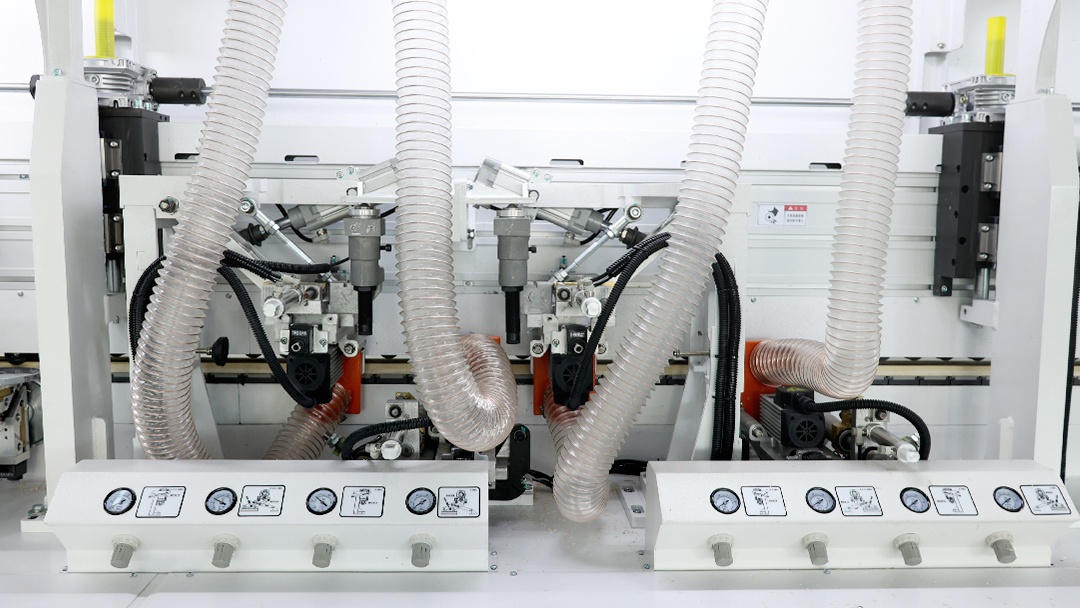

四電機仿形跟蹤

Four-motor profiling tracking

四電機獨立控制，高效精準仿形跟蹤，修角穩定性高，圓弧角完美。

The four motors are independently controlled, featuring efficient and precise profiling tracking, high stability in corner trimming, and perfect arc corners.
